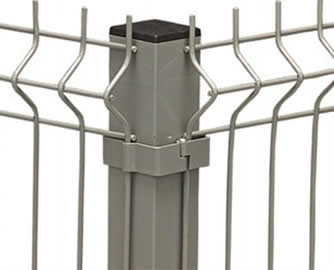

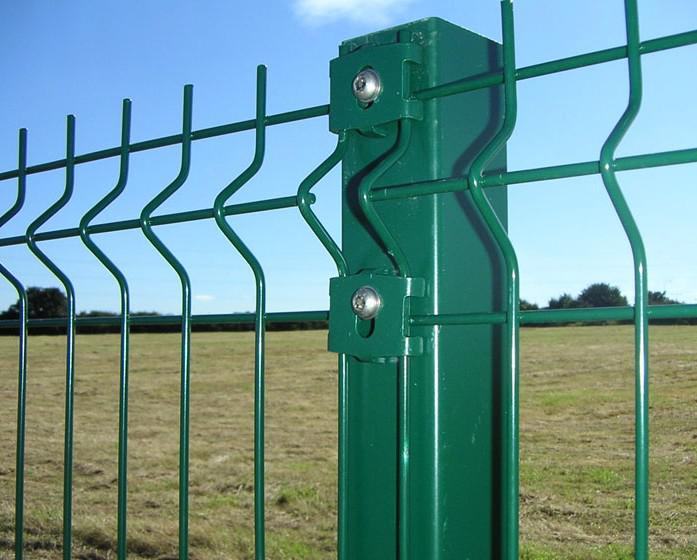

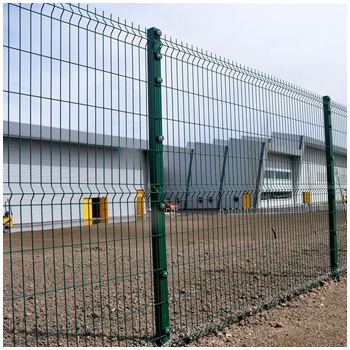

SHS Post Welded Mesh Fence
|
||||||
 |
SHS post is the most popular post for welded mesh fence. It includes welded mesh panels, steel post and the accessories. We use good quality low carbon steel wire or galvanized wire do the welding, then make several curves based on the height of the panels to make the panel rigid and strong. Normally there will be 3cm spike wire left at the top of the panels to make the fence jump over proof as well as good looking. For the surface treatment of the panels we use electrostatic spray or PVC dipped coating. For the post, we use galvanized then do electrostatic spray.
Standard color:
Features:
• Easy Installation
• Cost effective
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Different options of install clips such as metal or plastic
Application: factory and workshops, garden, public buildings, government, schools, parks and playgrounds, sport stadium, roads and railways, villa.
Technical:
Panel
| Width : | 2.50m, 2.75m, 3.0m |
| Height: | 1.23, 1.53, 1.73, 2.03, 2.23, 2.43, 3.03m |
| Mesh: | 50x200mm, 50x150mm, 50x100mm |
| Wire thickness: | 4.0mm,4.5mm,5.0mm |
| Rigid V: | 2, 3, 3, 4, 4, 4, 6 |
| Finish: | PRE-EDG+PP, PRE-HDG+PP, PRE-GALFAN+PP, HDG, HDG+PP |
| Nos. of brackets | 2, 3, 3, 4, 4, 4, 6 |
Post
| Section : | SHS |
| Section size: | 50x50, 60x60mm |
| Height: | According to the panel height |
| Wall thickness: | 1.5/2.0/2.5 mm |
| Finish: | PRE-HDG+PP, HDG, HDG+PP |
Accessories:

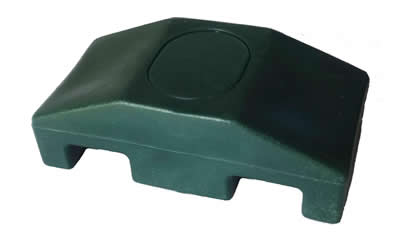

• 1pcs of post plastic rain hats

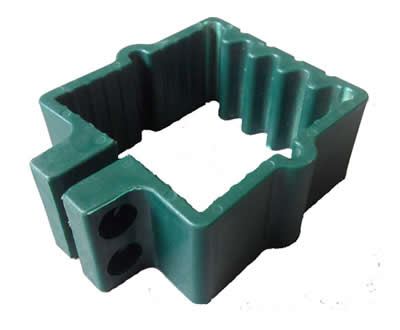

• Plastic Clamps with bolts and nuts

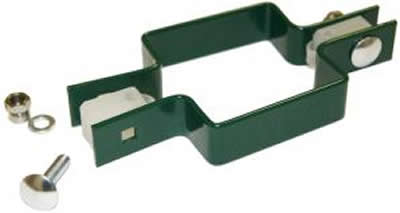

• Metal clamps with bolts and nuts
Packing:
Mesh panels: Metal pallet wrapped with cardboard plate and then wrapped with plastic film
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Cardboard box;
Customized packing is available.
