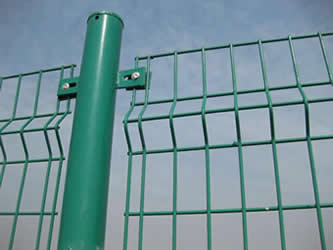

Round post is not a popular choice for weld mesh fence specially for export, but it is much more economic than others. We use common rigid mesh panel and then connect with plastic clamps to the post. In China, there are many such design, it is very easy to install, and the panel size is different from the exporting specifications. Normally, we do not produce hot dipped galvanized fence for this type. The common treatment is PVC dipped panel with powder spray post, or all the panel and post are powder spray.
Standard color:
Features:
• Easy Installation
• Cost effective
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
Application: factory and workshops, garden, public buildings, government, schools, parks and playgrounds, sport stadium, roads and railways, villa.
Technical:
Panel
Width : | 2.50m, 2.75m, 3.0m |
Height: | 1.23, 1.53, 1.73, 2.03, 2.23, 2.43, 3.03m |
Mesh: | 50x200mm, 50x150mm, 50x100mm |
Wire thickness: | 4.0mm,4.5mm,5.0mm |
Rigid V: | 2, 3, 3, 4, 4, 4, 6 |
Finish: | PRE-EDG+PP, PRE-HDG+PP, PRE-GALFAN+PP |
Nos. of brackets | 2, 3, 3, 4, 4, 4, 6 |
Post
Section : | CHS |
Section size: | Ø48, Ø60 |
Height: | According to the panel height |
Wall thickness: | 1.5/2.0/2.5 mm |
Finish: | PRE-HDG+PP |
Accessories:
• 1pcs of post plastic rain hats

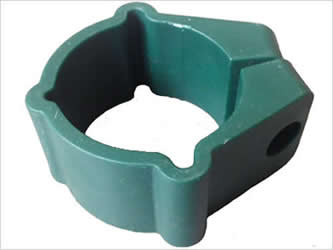

• Plastic Clamps with bolts and nuts
Packing:
Mesh panels: Metal pallet wrapped with cardboard plate and then wrapped with plastic film
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Cardboard box;
Customized packing is available.
