RHS Post Welded Mesh Fence
|
||||||
 |

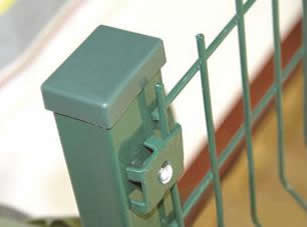

RHS post is mainly used on twin wire panel fence, it is also used on welded mesh fence as an economic choice. The panel is the normal welded mesh panel with curve and spikes, the finish is electrostatic spray or PVC dipped coating. Only the post is different, we use rectangular section post, and we use galvanized then do electrostatic spray.
Standard color:
Features:
• Easy Installation
• Cost effective
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Different options of install clips such as metal or plastic
Application: factory and workshops, garden, public buildings, government, schools, parks and playgrounds, sport stadium, roads and railways, villa.
Technical:
Panel
| Width : | 2.50m, 2.75m, 3.0m |
| Height: | 1.23, 1.53, 1.73, 2.03, 2.23, 2.43, 3.03m |
| Mesh: | 50x200mm, 50x150mm, 50x100mm |
| Wire thickness: | 4.0mm,4.5mm,5.0mm |
| Rigid V: | 2, 3, 3, 4, 4, 4, 6 |
| Finish: | PRE-EDG+PP, PRE-HDG+PP, PRE-GALFAN+PP, HDG, HDG+PP |
| Nos. of brackets | 2, 3, 3, 4, 4, 4, 6 |
Post
| Section : | RHS |
| Section size: | 40x60, 60x80mm |
| Height: | According to the panel height |
| Wall thickness: | 1.5/2.0/2.5 mm |
| Finish: | PRE-HDG+PP, HDG, HDG+PP |
Accessories:
• 1pcs of post plastic rain hats

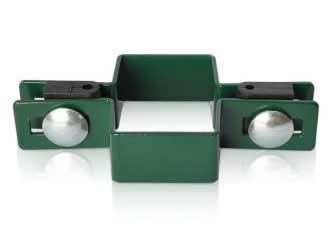

• Plastic Clamps with bolts and nuts
• Metal clamps with bolts and nuts
Packing:
Mesh panels: Metal pallet wrapped with cardboard plate and then wrapped with plastic film
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Cardboard box;
Customized packing is available.
