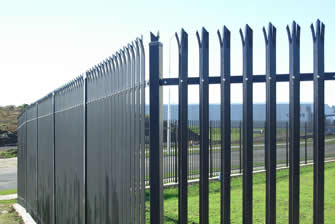

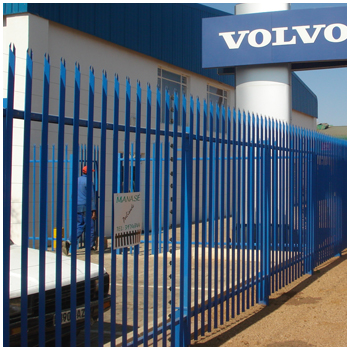

L pale palisade fence is made up of angle iron pale and rails. The post is square section or IPE POST. With different point on the top. It is widely used around the telecom tower as it’s high security function.
Features:
• Easy installation
• Economical compare with other type of palisade fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability

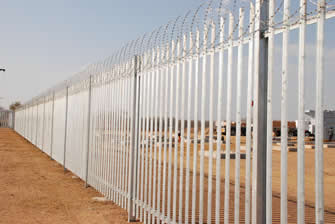

• Strong and high security, it is possible of putting concertina razor wire at the top
Technical for straight type:
Panel & post
Pale type: | L |
Pale size: | 40x40mm, 45x45mm |
Pale thickness: | 3.0mm, 3.5mm, 4.0mm |
Height: | 1800, 2100, 2400, 3000mm |
Width: | 2750mm |
Angle rail: | L50x50x5.0mm, L50x50x6.0mm |
Post: | IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0 |
Pale section: | Triple point, single point |
Finish: | HDG+PP, PRE-HDG+PP, HDG |
Accessories:10
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire
Packing:
Pales, angle rail, post: wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
