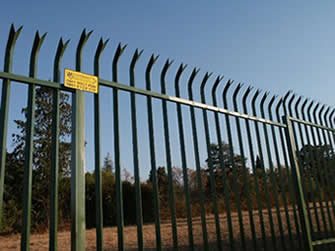

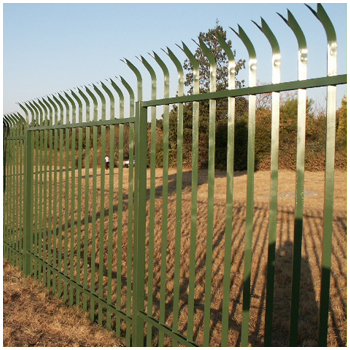

L pale palisade fence is made up of angle iron pale and rails. The post is square section or IPE POST. With different point on the top.
Features:
• Easy installation
• Economical compare with other type of palisade fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina razor wire at the top
Technical for bend type:
Panel & post
Pale type: | L |
Pale size: | 40x40mm, 45x45mm |
Pale thickness: | 3.0mm, 3.5mm, 4.0mm |
Height: | 1800, 2100, 2400, 3000mm |
Width: | 2750mm |
Angle rail: | L50x50x5.0mm, L50x50x6.0mm |
Post: | IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0 |
Pale section: | Triple point, single point |
Finish: | HDG+PP, PRE-HDG+PP, HDG |
Accessories:
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire
Packing:

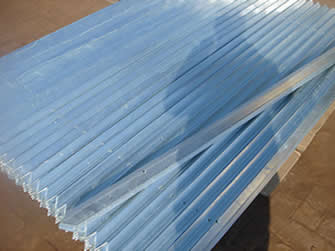

Pales, angle rail, post: wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
