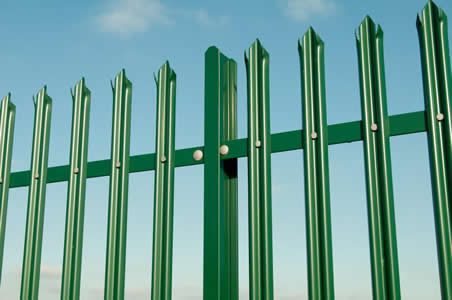

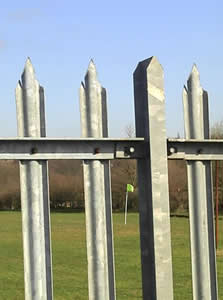

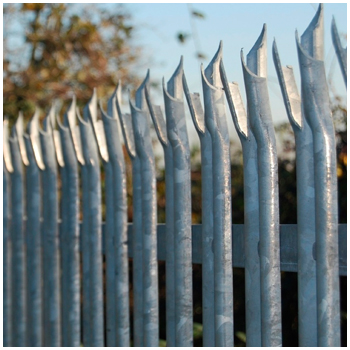

W pale Palisade fence (straight type) is the most popular choice for the high security fence. By now, we have shipped the palisade fence to Europe, Middle east, Africa as well as Australia. It used as private fence or public fence, specially for high security purpose.
Applications: electricity providers and regional networks, water industry, telecom industry, police and law enforcement, railway line/track protection, motorways and highway protection, schools, colleges and universities, research laboratories.
Features:
• Easy installation
• With a high cost level compare with other type fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina razor wire at the top
Technical for straight type:
Panel & post
Pale type: | W |
Pale size: | 68mm |
Pale thickness: | 2.0mm, 2.5mm, 3.0mm |
Height: | 1800, 2100, 2400, 3000mm |
Width: | 2750mm |
Angle rail: | L50x50x5.0mm, L50x50x6.0mm |
Post: | IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0 |
Pale section: | Triple point, single point, round point |
Finish: | HDG+PP, PRE-HDG+PP, HDG |
Accessories:
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire
Packing:
Pales, angle rail, post: wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
