Palisade fence is one kind of most popular choice for the area that requiring a higher level of security and vandal resistance, It is widely used in the whole world. The fence is normally include pales, horizontal rails, Post and then installed together with fish plate and security screws. The finish we always do are Hot dipped galvanized and Polyester powder coated. This is the D section pale for palisade fence. By now, we have shipped the palisade fence to Europe, Middle east, Africa as well as Australia.
Features:
• With a high cost level compare with other type fence
• Nice looking
• Different options on color according to the using environment
• Strong anti rust and anti corrosion ability
• Strong and high security, it is possible of putting concertina razor wire at the top

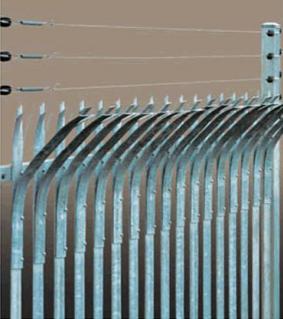

Technical for bend type:
Panel & post
Pale type: | D |
Pale size: | 68mm |
Pale thickness: | 2.0mm, 2.5mm, 3.0mm |
Height: | 1800, 2100, 2400, 3000mm |
Width: | 2750mm |
Angle rail: | L50x50x5.0mm, L50x50x6.0mm |
Post: | IPE100x55, IPE120x74, SHS80x80x3.0, SHS100x100x4.0 |

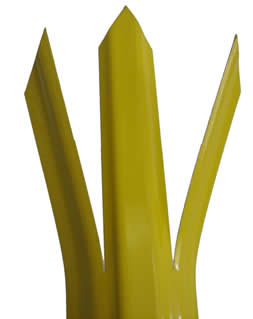

Pale section: | Triple point, single point, round point |
Finish: | HDG+PP, PRE-HDG+PP, HDG |
Accessories:
• Fish plate
• Bolts and nuts
• Single arm, Y arm
• Razor wire and barbed wire
Packing:
Pales, angle rail, post: wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
