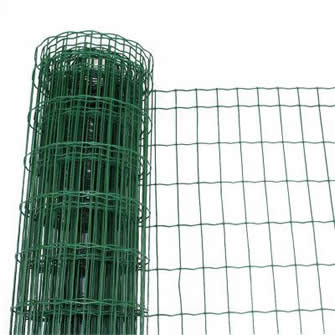

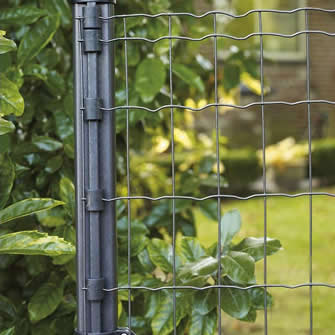

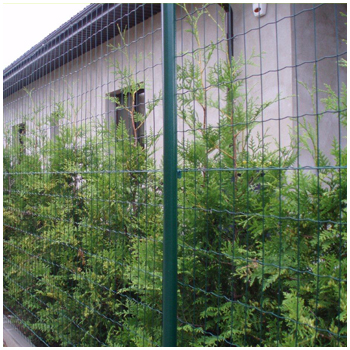

Euro fence is also named as a garden fence or road fence. It is include with PVC coated fence rolls and Special post. The length of each roll is 25m or 30m, and the height normally 1.8m or 2.0m. The mesh size normally is 50x50mm and the 50x100mm.The post length is normally 2.3m or 2.5m. The mesh rolls are connected with the post with galvanized or stainless steel wire rings. The installation is very simple and one pair of support post will be put at 25m or 30m intervals. However most of the time it can be erected without additional support.
Features:
• Widely used
• Cost effective
• Nice looking
• Easy to bend to your desired shape, and can be trimmed down to the required size.
• Strong anti rust and anti corrosion
Technical:
Mesh Euro
Height : | 1.2m, 1.5m, 1.8m, 2.0m |
Length: | 25m, 30m |
Mesh: | 50x100m |
Wire thickness: | 2.0mm, 2.5mm, 3.0mm |
Finish: | PRE-EDG+PC, PRE-HDG+PC |
Post
Section view Size | P1-CHS | P2-Euro | P3-Support |
S1: | Ø48 | Ø48 | Ø38 |
S2: | Ø60.3 | Ø60 | Ø48 |
Wall thickness: | 1.2/1.5/2.0mm | 1.2/1.5/2.0mm | 1.2/1.5/2.0mm |
Accessories:
• Plastic clamp
• Steel or stainless steel rings
• Plastic post rainhat for line post
• Plastic post rainhat for support post
Packing:
Mesh rolls: in bulk or steel pallet;
Post: Wrapped with PP bags, then put on pallet, wrapped with plastic film;
Accessories: Carton box;
Special request on packing is available.
