Razor Mesh
|
||||||
 |

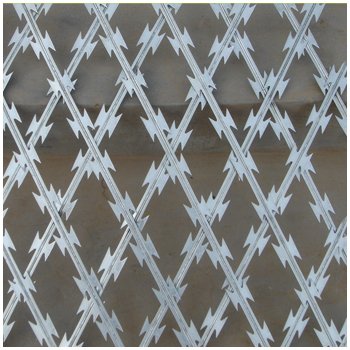

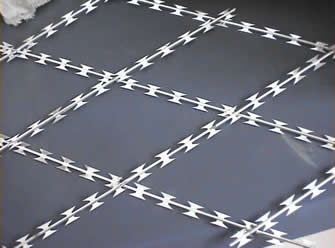

Welded ripper razor mesh is welded by razor wire, and the mesh hole is diamond, the mesh size should be 75x150mm, or 150x300mm. The mesh height is form 1.8m to 3.0m.
Features:
• Easy and quickly installation
• Economic
• More security than barbed wire
Technical:
General type
| Razor blade type | BTO-12, BTO-15, BTO-22, BTO-30, CBT-25, CBT-60, CBT-65 |
| Blade thickness: | 0.5±0.05mm, 0.6±0.05mm |
| Wire dia.: | 2.5±0.1mm |
| Barb length: | 12±1, 15±1, 22±1, 30±1, 25±1, 60±1, 65±1 |
| Barb width: | 15±1, 16±1, 18±1, 21±1, 32±1 |
| Barb spacing: | 26±1, 33±1, 34±1, 45±1, 40±1, 100±2 |
USE Type B - Razor mesh
| Mesh size: | 75x150, 150x300mm |
| Blade type: | BTO-12,22,30 |
| Length: | 6000mm |
| Height: | 1800, 2100, 2400, 3000 |
Packing:

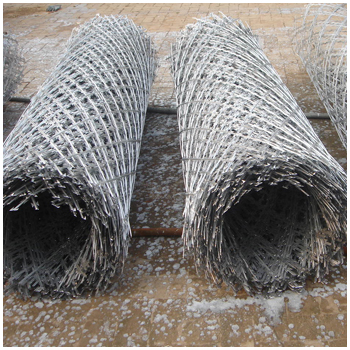

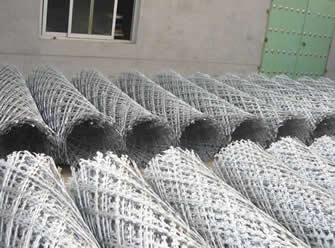

Razor mesh: in rolls and in steel pallet or steel gabion box
