Vibration Optical Fiber Alarm System
|
||||||
 |
Cheap Home Alarm Systems Perimeter Alarm Sensors Vibration Optical Fiber Alarm System

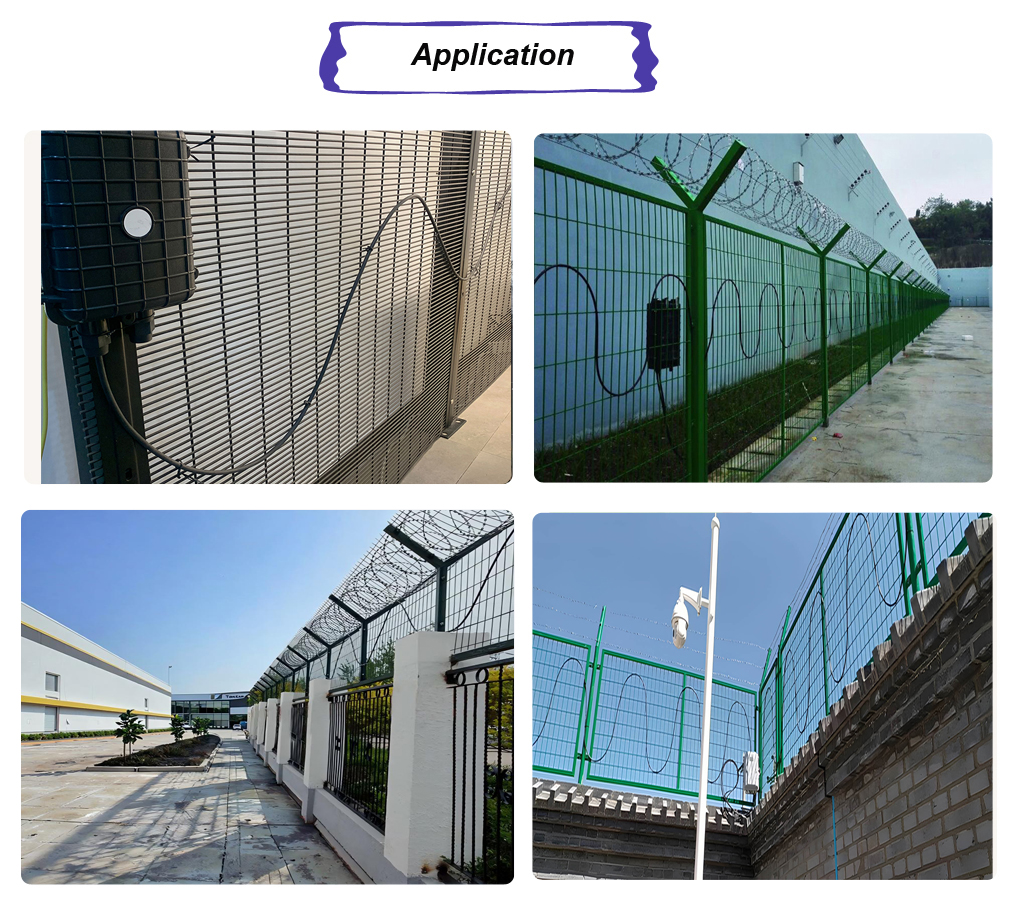

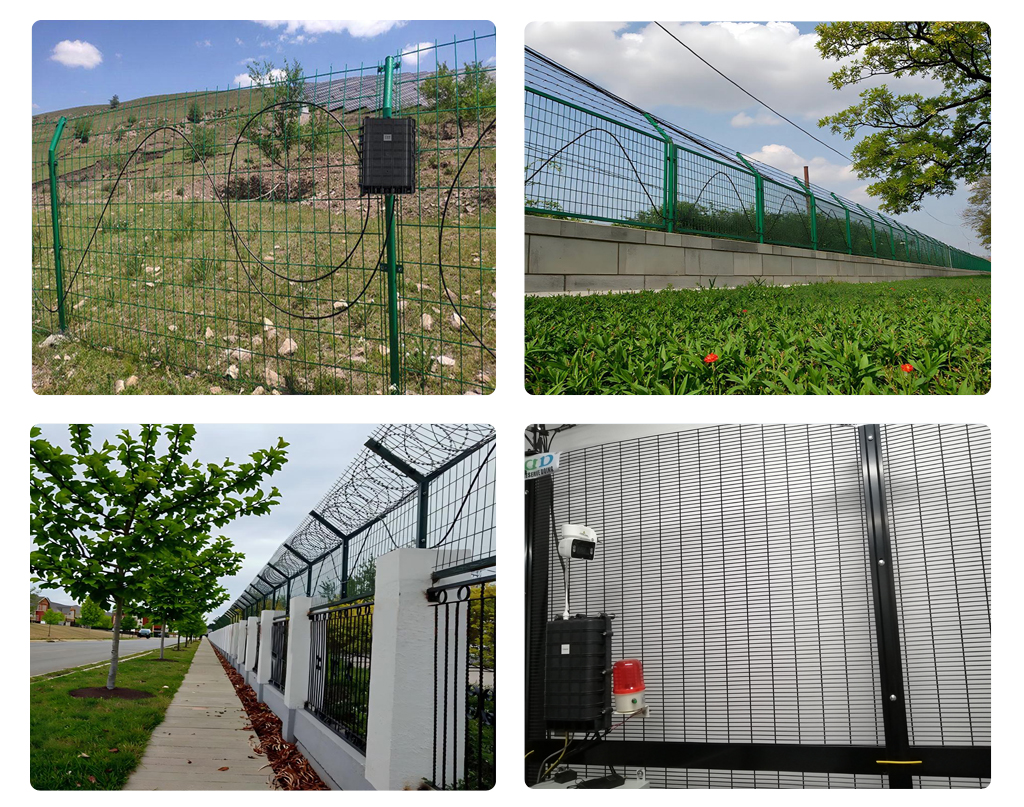

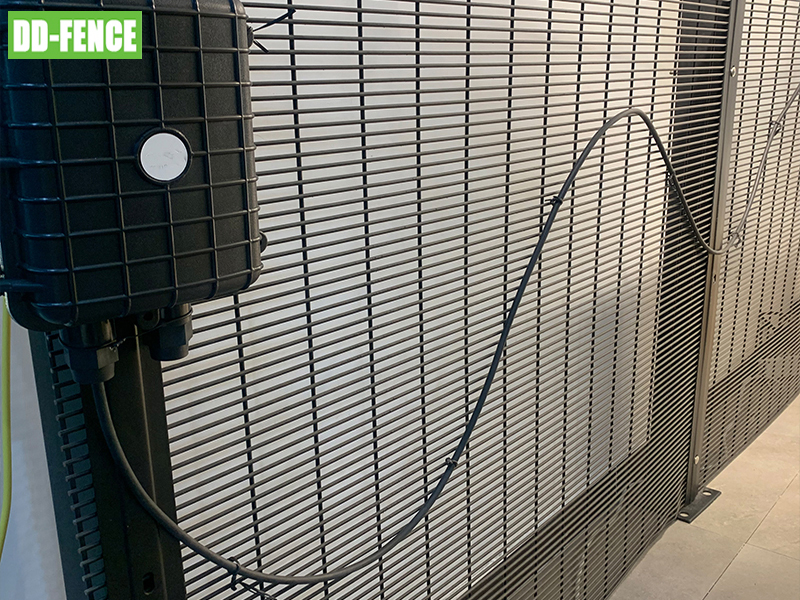

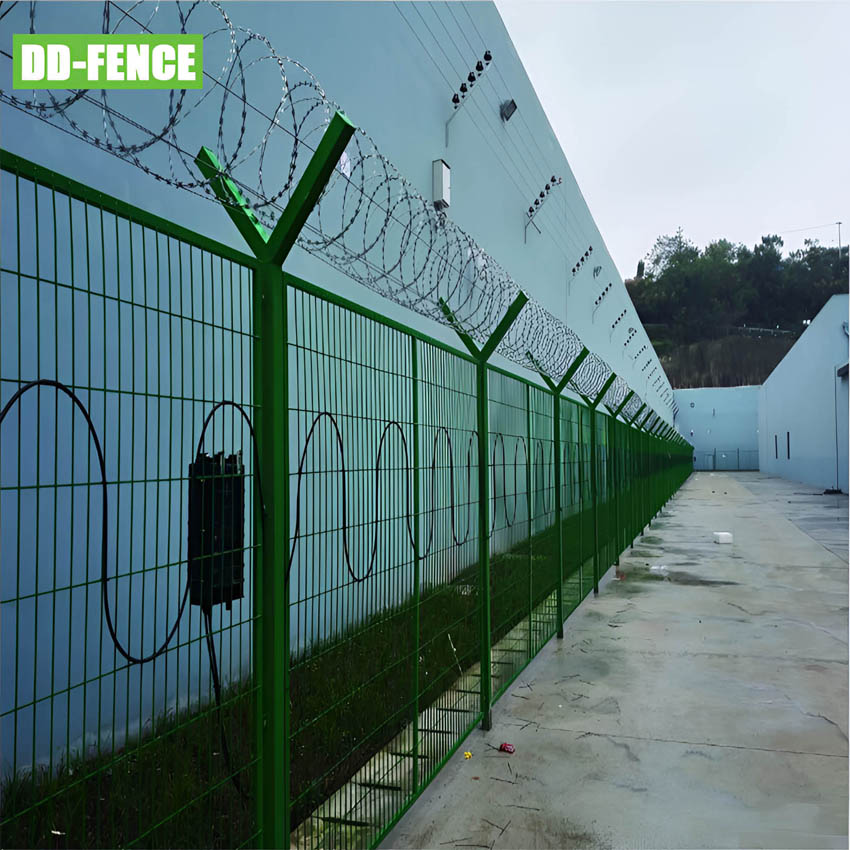

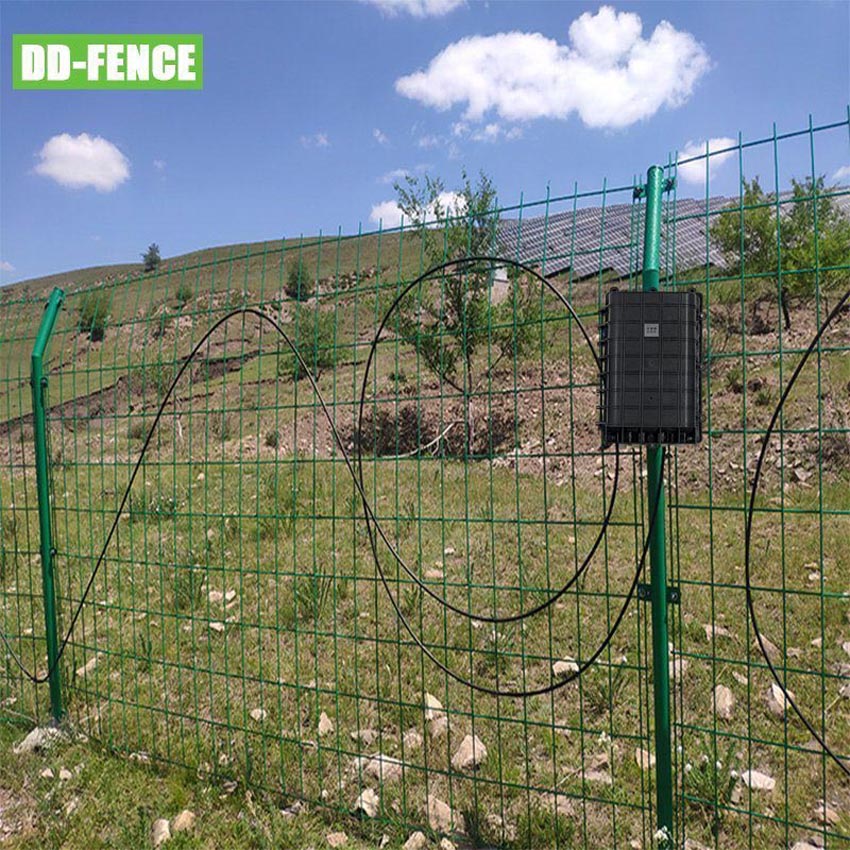

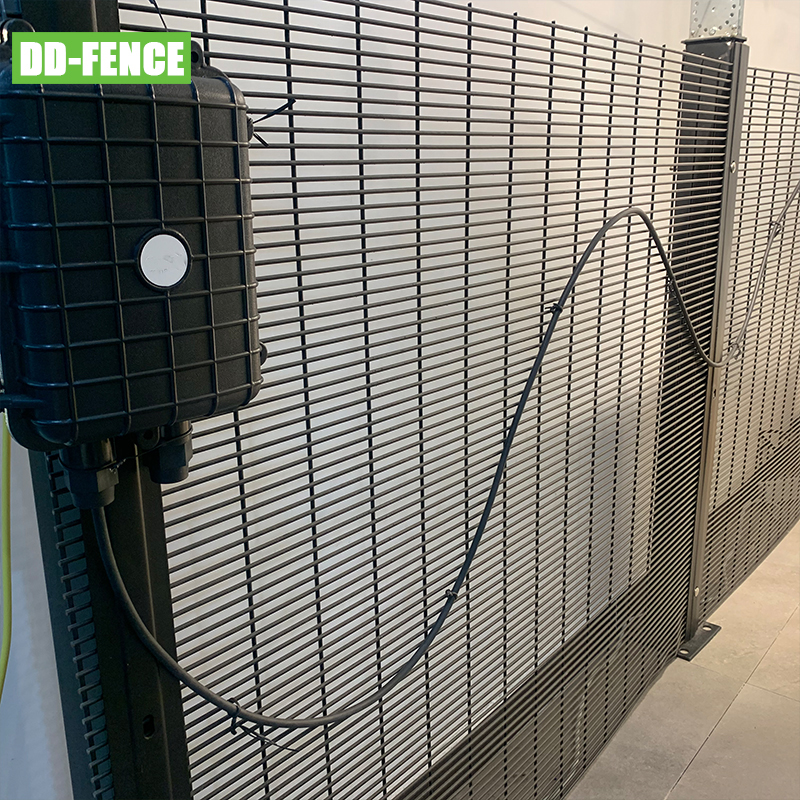

An alarm system that uses vibration to judge intrusion. Its detection element is a long special cable containing electronic components, which can be wound around the fence railings. The vibration of the railings caused by climbing can trigger the detector. The equipment connected with the detector can judge the position, thus giving alarm to the safety watchman.
When intrusion occurs, the system will alarm immediately and locate the alarm position when the cables vibrate slightly by knocking, climbing, trampling, touching, shaking and extrusion.
According to the different practical application environment, the system can be applied not only to various types of surface fences such as iron art, wire mesh fence and other metal fence.
Specification
| Working voltage | 12VDC |
| Alarm response time | <3 s |
| Warning power consumption | <1W |
| Length of defense zone | ≤1000 meters |
| Alarm power consumption | <1.5W |
| Working temperature | -30ºC--70ºC |
| Communication interface | LAN |
| Response time | ≤2S |
| Vibrating optical cable interface | FC/APC |
| Working wavelength | 1510-1590nm |
| MTBF | 2000h (Grade C) |
| Number of equipment defense | zones ≤2 |
| Power surge protection | Electric capacity: 10KA 8/20μs Clamping voltage: 40VDC |
| Electric shock capacity of linkage relay | 0.2A 110VDC 0.3A 125VAC 0.5A 30VDC |
